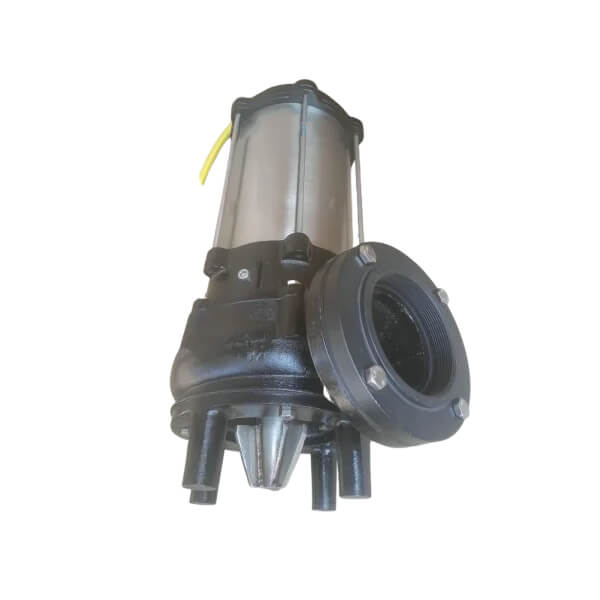

Flowline submersible agitator slurry pumps are purpose-built for re-suspending settled solids and pumping heavy slurry in industrial and municipal applications. Designed and manufactured at our ISO 9001:2015 certified facility in Gujarat.
The integrated agitator impeller stirs settled solids into suspension before the pump impeller draws them in — preventing clogging and ensuring consistent slurry density in the discharge. This makes them ideal for sewage treatment plants, ETP tanks, and industrial sumps where solids accumulate at the bottom.
Available from 2 HP to 15 HP with cast iron construction, double mechanical seals, and agitator impeller as standard. Flowline agitator pumps handle slurry concentrations that would clog conventional submersible pumps.
| Specification | Agitator Slurry Pump Models |
|---|---|
| Motor Power | 2 HP to 15 HP |
| Power Supply | 3-Phase, 415V, 50Hz |
| Flow Range | Up to 100 m³/hr |
| Head Range | Up to 20 meters |
| Max Solid Size | Up to 60mm |
| Max Slurry Concentration | Up to 40% by weight |
| Insulation Class | Class F |
| Sealing | Double mechanical seal + oil chamber |
| Material | Cast iron (FC 250 grade) |
| Impeller Type | Open non-clog with agitator |
| Discharge Size | 50mm to 150mm |
| Duty Cycle | Continuous (S1) |
