Description
MOTOR
2-pole induction continuous rated motor with squirrel cage rotor. Stator insulation class ‘H’ (180ºC)
BALL BEARINGS
The rotor shaft is carried in two single row, deep groove ball bearings. The bearings are enclosed with high temperature grease-containing special Anti-corrosion additive.
POWER CABLE
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU.
SHAFT SEAL
Tandem Tungsten Carbide/Tungsten Carbide and Tungsten Carbide/Tungsten Carbide Mechanical seals wholly enclosed in a pressure compensated oil chamber.
CORROSION RESISTANT
- Epoxy coated Extruded Aluminum Stator Casing
- Nitrile Rubber– Lined Wear plate.
- Shaft: 431 Stainless Steel
- Hardware: 304 Stainless Steel
- Impeller: Nitride Hardened 410SS to 56HRC is Standard.
- Volute: 304 Stainless Steel
- pH Range 5 – 8

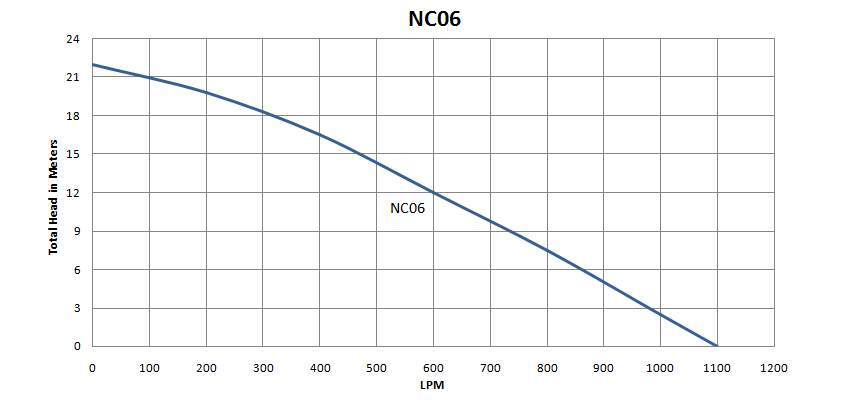

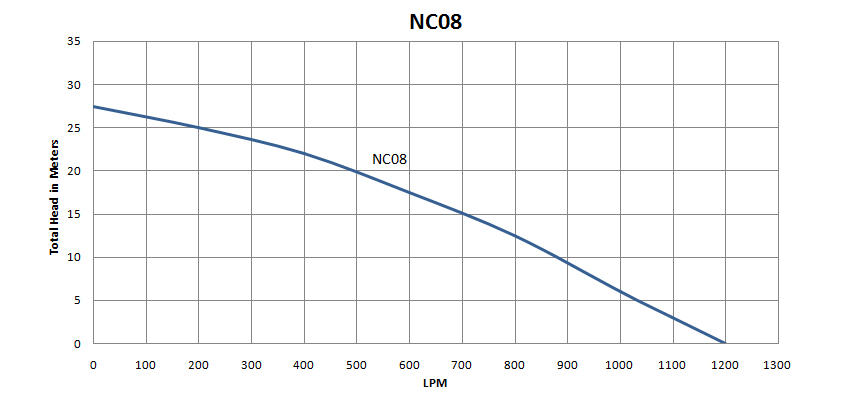

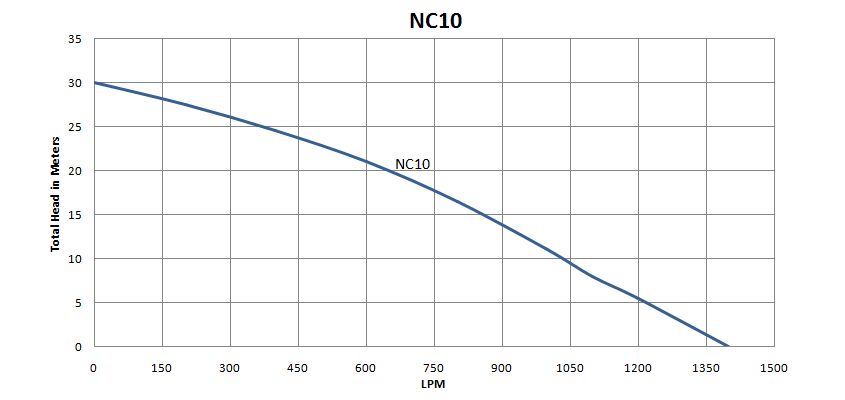

| 50Hz | NC 06 | NC 08 | NC 10 |
|---|---|---|---|
| Discharge Connection- [mm] | 100 mm | 100 mm | 100 mm |
| Power Range [kW] | 4.5 | 6 | 7.5 |
| Max Flow Range – [LPM] | 1100 | 1220 | 1450 |
| Max Shut-Off Head- [m] | 65mm | 65mm | 65mm |
| Solids Handling- [mm] | NA | NA | NA |
| Impeller Type | Vortex | Vortex | Vortex |
| Power Supply 230/380/460/575 volts | Yes | Yes | Yes |
| Cooling jacket system -optional | No | No | No |
| Max Starts/Stop per hour | 15 | 15 | 15 |
| Motor- VFD rated | 2 Poles | 2 Poles | 2 Poles |
